Reolink RLA-PS1E | 5-Port Gigabit PoE Switch with 65W Power Budget

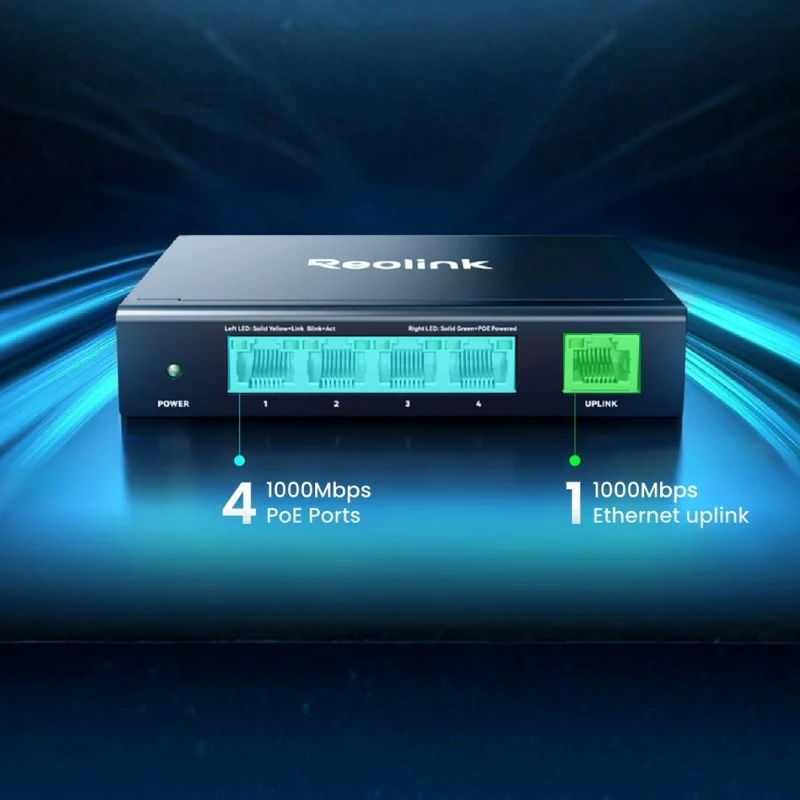

The Reolink RLA-PSIE is a PoE Switch with 5 ports; 4 x Gigabit ports and 1 x Gigabit Ethernet uplink port.
This Switch can deliver up to 30W for each PoE port and has a 65W total power budget for up to 4 x PoE devices.
Power over Ethernet Technology: Reolink RLA-PS1E provides a reliable PoE solution featuring 4 Gigabit PoE+ ports (10/100/1000Mbps) and 1 Gigabit Ethernet uplink port (10/100/1000Mbps). Compliant with IEEE802.3af/at standard, it can deliver up to 30W for each PoE port and has a total power budget of 65W for up to 4 PoE devices.

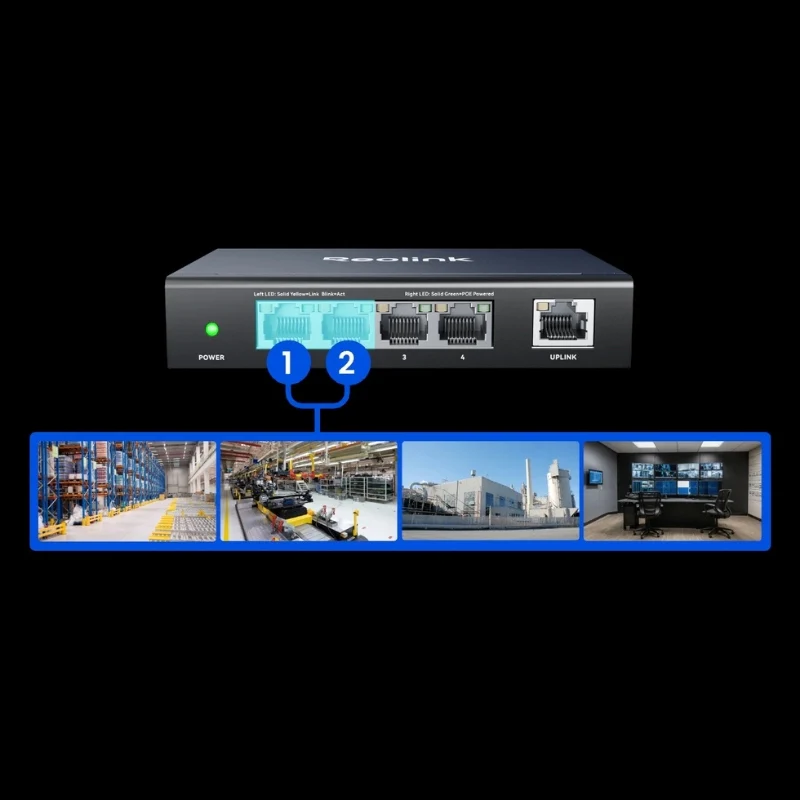

Extend Mode: With Extend Mode enabled, the transmission speeds of Port 1 and 2 will be limited to 10Mbps, extending PoE distance to 820ft (250m) *. Simplify long-distance cabling for large spaces.
*Note: Standard Cat5e cable is required.

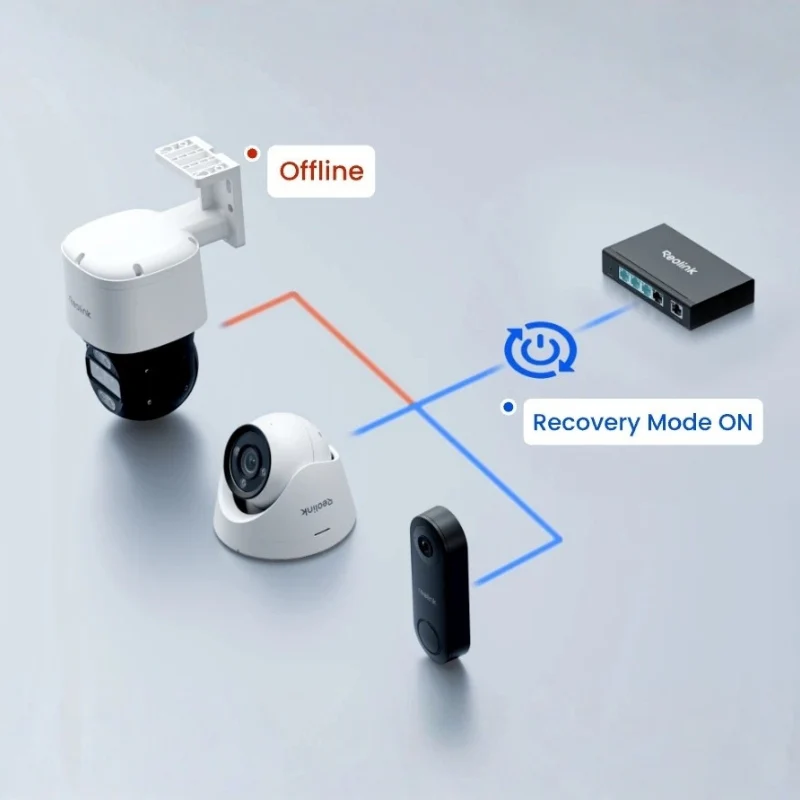

Recovery Mode: Automatically detects and reboots offline or unresponsive PoE devices, ensuring stable PoE connection and eliminating the hassles of manual resets.
Power Management: By monitoring power usage of connected devices,this PoE switch safeguards crucial ports and prevents power overloads. Once the total consumption exceeds 65W, it will power down sequentially from Port 4 to Port 1 until it drops below the switch's threshold.
Auto Detection of Adaptive Devices: The RLA-PS1E automatically identifies whether the connected device supports PoE and requires power, ensuring non-PoE is not powered to prevent potential damage.
4KV Surge Protection: With professional lightning protection on both ports and power supply, this PoE switch effectively blocks sudden spikes in voltage, avoiding damage to connected devices.
Noiseless Performance: With fanless design, this PoE switch operates without making any noises, ensuring a quiet environment at all times.
Plug & Play: Working perfectly with your PoE cameras, it transfers both data and electric power through only one Ethernet cable. You can connect it directly to your NVR or to the same LAN as your cameras. Easy to set up even for beginners.
- Connect to the Same LAN as Cameras
- Directly Connect to NVR
Note: This PoE switch can only provide network data but not power when connected to Wi-Fi cameras.
The Reolink RLA-PSIE is a PoE Switch with 5 ports; 4 x Gigabit ports and 1 x Gigabit Ethernet uplink port.
This Switch can deliver up to 30W for each PoE port and has a 65W total power budget for up to 4 x PoE devices.
Power over Ethernet Technology: Reolink RLA-PS1E provides a reliable PoE solution featuring 4 Gigabit PoE+ ports (10/100/1000Mbps) and 1 Gigabit Ethernet uplink port (10/100/1000Mbps). Compliant with IEEE802.3af/at standard, it can deliver up to 30W for each PoE port and has a total power budget of 65W for up to 4 PoE devices.
Extend Mode: With Extend Mode enabled, the transmission speeds of Port 1 and 2 will be limited to 10Mbps, extending PoE distance to 820ft (250m) *. Simplify long-distance cabling for large spaces.
*Note: Standard Cat5e cable is required.
Recovery Mode: Automatically detects and reboots offline or unresponsive PoE devices, ensuring stable PoE connection and eliminating the hassles of manual resets.
Power Management: By monitoring power usage of connected devices,this PoE switch safeguards crucial ports and prevents power overloads. Once the total consumption exceeds 65W, it will power down sequentially from Port 4 to Port 1 until it drops below the switch's threshold.
Auto Detection of Adaptive Devices: The RLA-PS1E automatically identifies whether the connected device supports PoE and requires power, ensuring non-PoE is not powered to prevent potential damage.
4KV Surge Protection: With professional lightning protection on both ports and power supply, this PoE switch effectively blocks sudden spikes in voltage, avoiding damage to connected devices.
Noiseless Performance: With fanless design, this PoE switch operates without making any noises, ensuring a quiet environment at all times.
Plug & Play: Working perfectly with your PoE cameras, it transfers both data and electric power through only one Ethernet cable. You can connect it directly to your NVR or to the same LAN as your cameras. Easy to set up even for beginners.
- Connect to the Same LAN as Cameras
- Directly Connect to NVR
Note: This PoE switch can only provide network data but not power when connected to Wi-Fi cameras.
